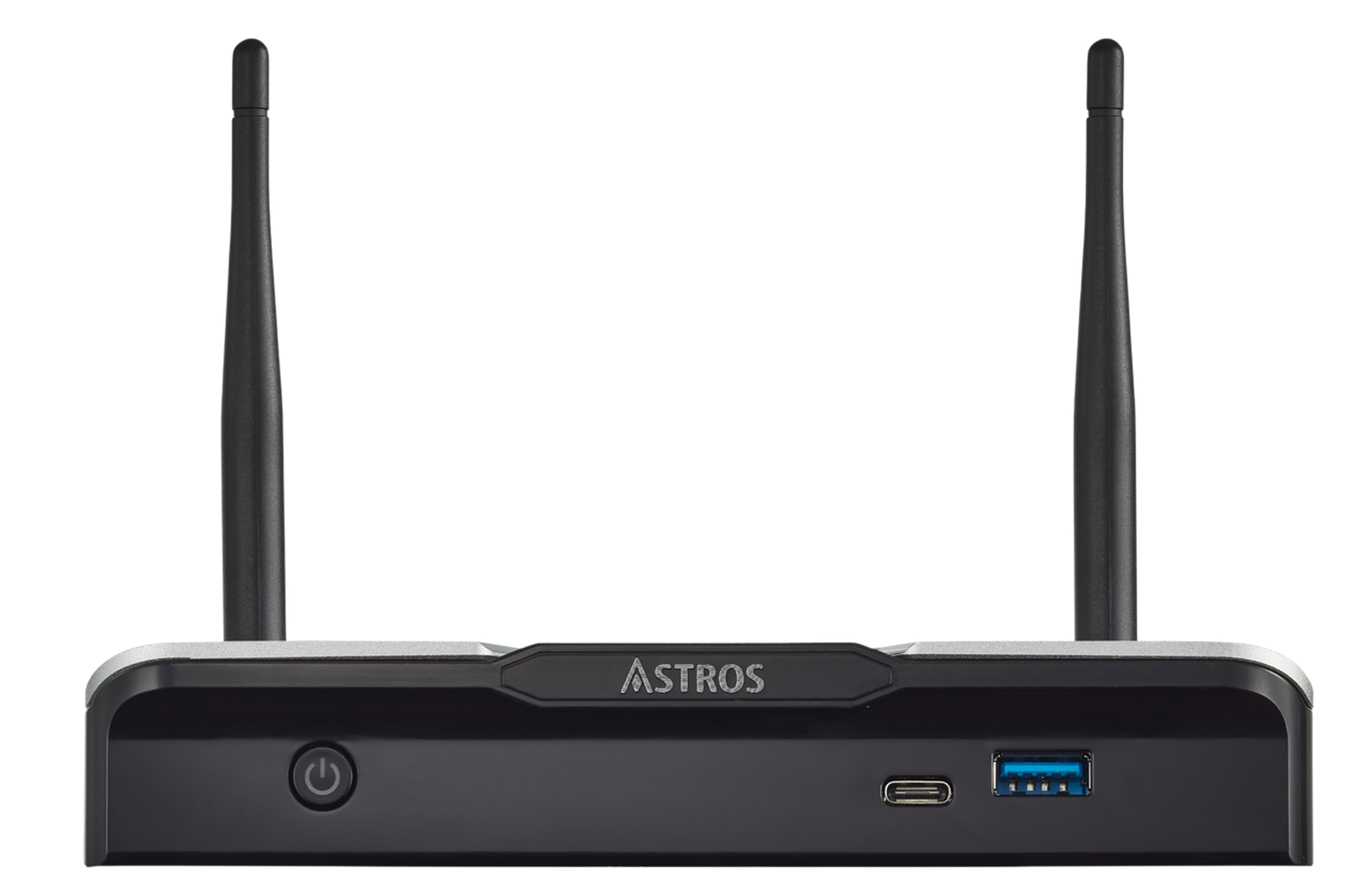

ASTROS Station AS-201

Connect. Share. Collaborate – Wirelessly

ASTROS Station AS-201 is an all-in-one wireless presentation and conferencing receiver for medium to large meeting rooms.

Transform any space into a wireless hub for BYOD and BYOM. With the ASTROS Station AS-201, teams can present, share, and conference effortlessly — no cables, no limits.

Download Brochure Download Firmware

Annotation Tool

Draw, highlight, and collaborate on-screen.

Remote View

Access live screen content from your personal device.

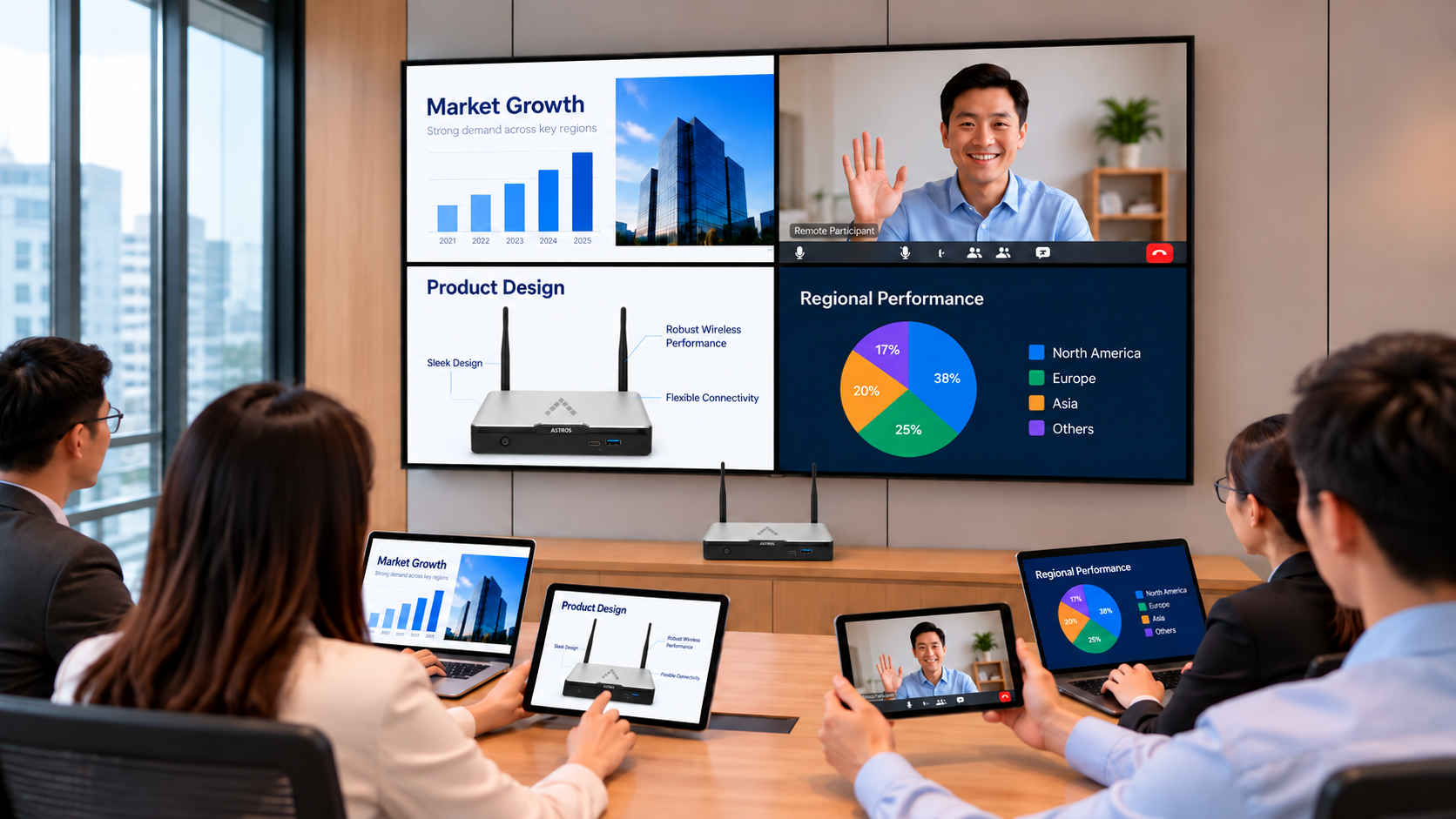

4-Split View

Display up to four sources simultaneously, side by side.

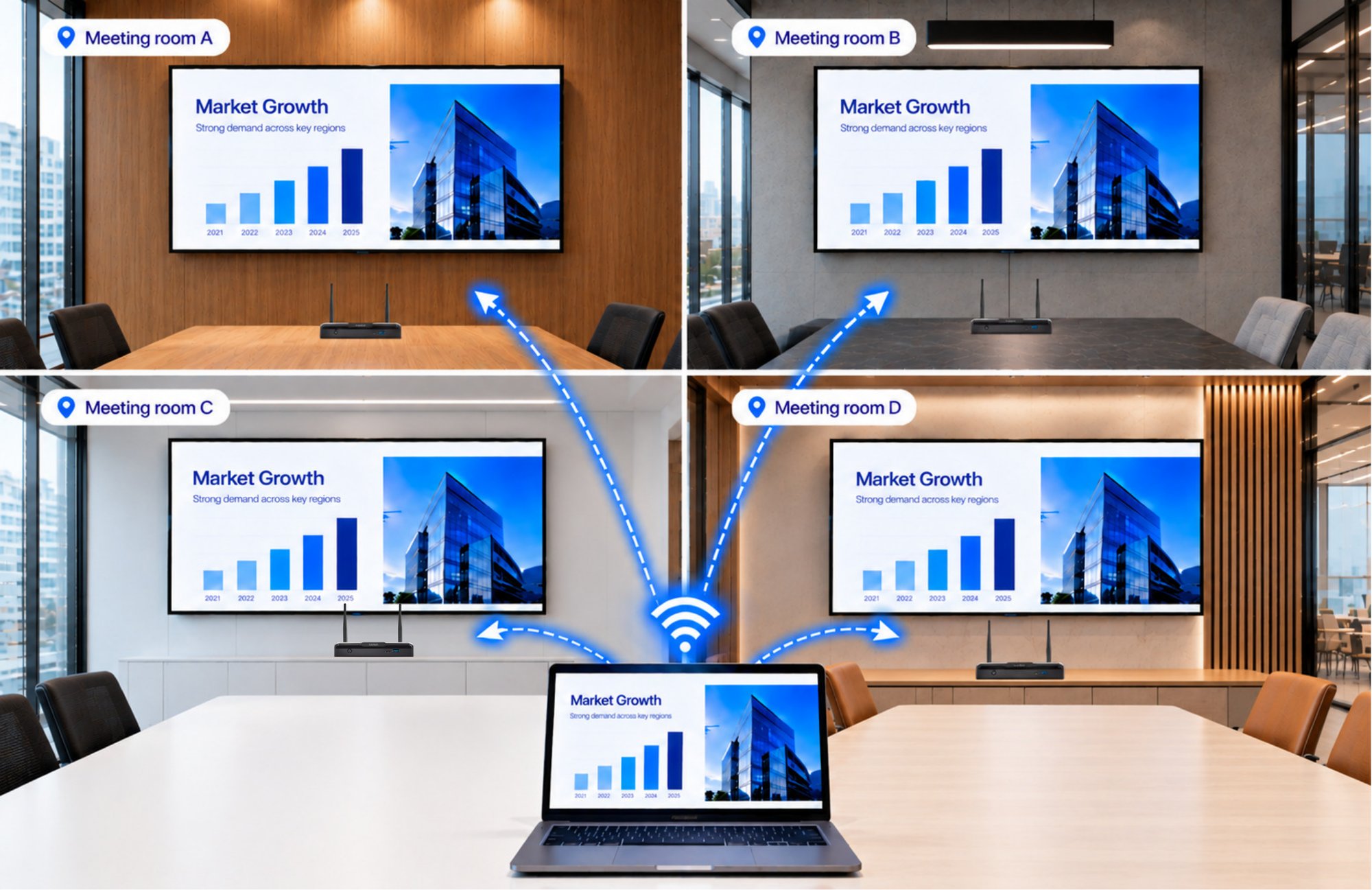

One-to-Many

Send content to multiple screens at once.

Smart Sharing

Pick between full screen or specific app windows.

HDMI & VGA

Send the same content to VGA and HDMI at the same time.

Native Mirroring

Mirror your device instantly with AirPlay, Google Cast, or Miracast.

4K Video Output

Showcase your content in vibrant 4K resolution.

Work Smarter in 3 Steps
icon-1

Set Up the Station

  • Power up with DC or PoE
  • Connect your display and conferencing devices (HDMI & USB)
  • Get online via Ethernet or standalone mode
icon-2

Get Ready to Share

  • For mobile devices, install the ASTROS App, or connect via AirPlay or Google Cast.
  • For laptops, install the ASTROS App, or connect using the ASTROS Pod or Miracast.

💡Tip: Ensure your device and the ASTROS Station are connected to the same network.
icon-3

Start Sharing

  • ASTROS Pod: Press the button when it lights blue, you’re ready to share.
  • ASTROS App: One tap on the ▶️ play button, and your screen goes live.

Central Hub for Collaboration

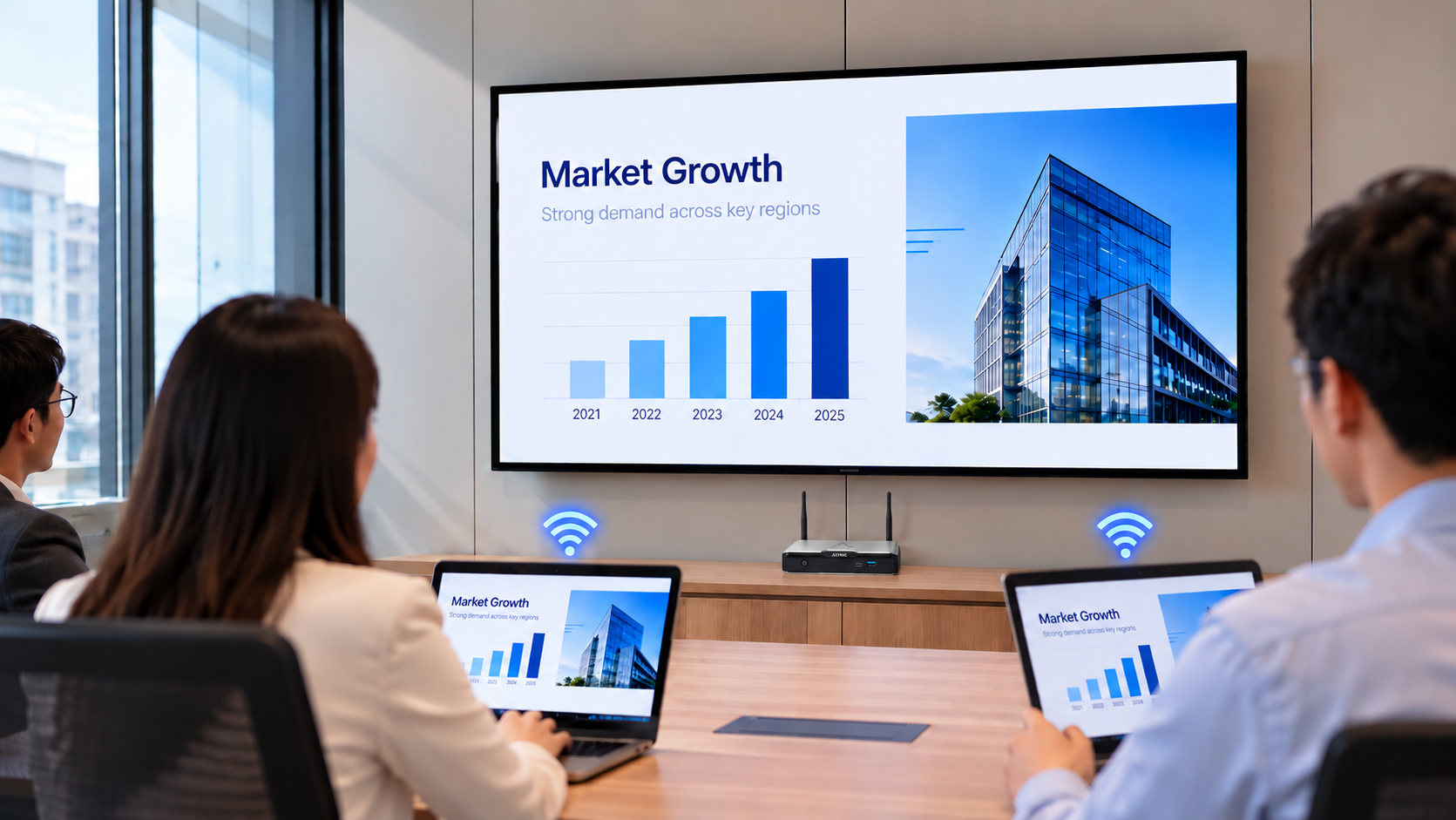

Presentation (BYOD)

Group 7752

Conferencing (BYOM)

Group 7750 (1)
background image-2 (2)-2

Paired with ASTROS Sender
Group 7807-1


Hardware

ASTROS Pod

Designed for USB-C devices, the ASTROS Pod enables one-click wireless conferencing and screen sharing—no setup required.
Group 7819


Software

ASTROS App

An intuitive app for laptops and mobile devices, enabling effortless sharing and seamless hybrid collaboration.

Complete Your ASTROS Solution

Pair your ASTROS hardware with powerful software and flexible licensing to unlock more possibilities.
Group 7824 (1)

Software

ASTROS Manager

Centralized Control for Smarter Device Management
image 386
License

APP BYOM

Bring Your Camera, Mic & Speaker to Life

Key Features

Key Features

ASTROS Wireless System
Group 7823-1

Compatibility

Works with the tools and devices you already use.
ASTROS Compatible (1)
Google Meet MS Teams Logo 14 Zoom Logo (1) 1707836872slack-logo-png
Angekis Wide ATEN_logo_20210128 17-1 Bose Logo Group 7737 Iiyama_logo.svg inogeni logo IPEVO Logo (1) Jabra_Logo jorjin idDXuX8rvi_1748948096638 1 image 306 (1) LINDY-Logo_RGB_black_BufferZoneException Logitech-Logo Lumens Wide (1) neat logo NETGEAR_Enterprise_logo_primary-01 image Group (1) 28036 layer-MC0 hp poly logo Group 7746 blue-samsung-logo-png-4 shure_logo televic_green_cmyk ViewSonic-Logo WAVESPLITTER Logo-黑字彩圖 YAMAHA yealink
AS-101 AS-201
Feature Overview
BYOD (Bring Your Own Device)
BYOM (Bring Your Own Meeting)
APP BYOM
Split Screen Display
Up to 2 screens
Up to 4 screens
Video Output
HDMI, VGA
HDMI, VGA
Touch Back / HID Control
Built-in Whiteboard
Annotation Tools
Remote View
via ASTROS App
Up to 20 devices per station
One-to-Many
via ASTROS App
Smart Sharing
via ASTROS App

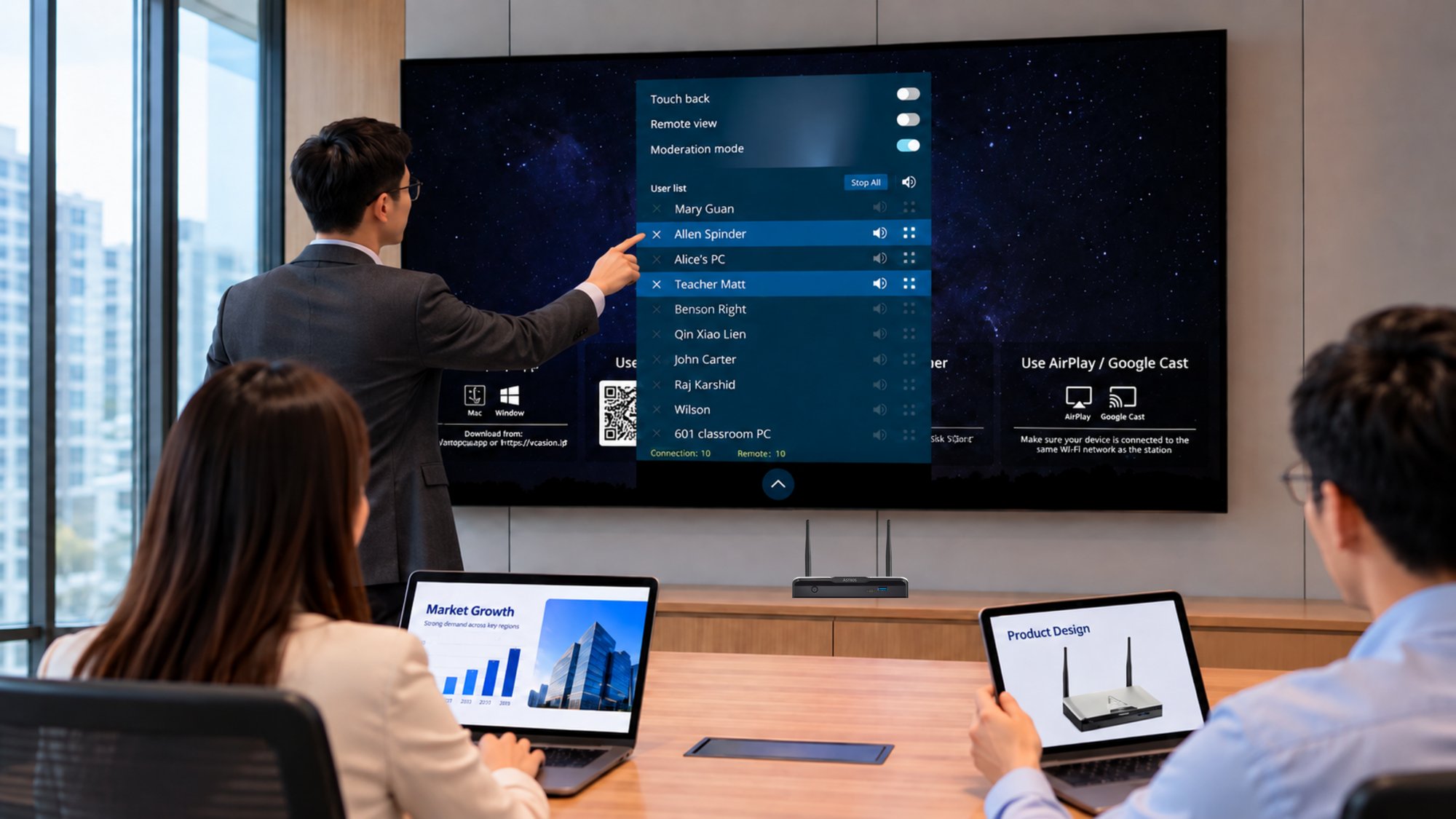

Moderation Mode
On-Screen
On-Screen & Web
GateKeeper
Native Mirroring
Airplay, Google Cast, Miracast, BeamOp, Browser Sharing
*Miracast works with an optional dongle
Airplay, Google Cast, Miracast, BeamOp, Browser Sharing
*Miracast works with an optional dongle
Connection Capacity
Up to 8 connections
Up to 20 connections
*Wi-Fi router is required when Wi-Fi direct connections to ASTROS Station exceed 8 including ASTROS Pod.
OTA Update
AS-201
Specifications
Compatible OS

Windows 10 or later

macOS 12.5 or later (BYOM 13.5 or later)

iOS 14 or later

Android 11.0 or later

Chrome OS 84 or later
Video Output Resolution

HDMI: up to 4K @60Hz

HDMI+VGA: up to 1080p @60Hz
Audio Output
HDMI and 3.5mm Audio Jack
Wi-Fi Band
Switchable dual band 2.4GHz / 5GHz (DFS channels not supported)
Wireless Transmission Protocol
IEEE 802.11ac
Power
DC input, PoE supported
LAN
Single LAN port
Authentication

AP Mode: WPA2-PSK

Station Mode: WEP, WPA, WPA2, 802.1x EAP
Ethernet
10/100/1000 Mbps RJ-45 LAN (PoE supported)

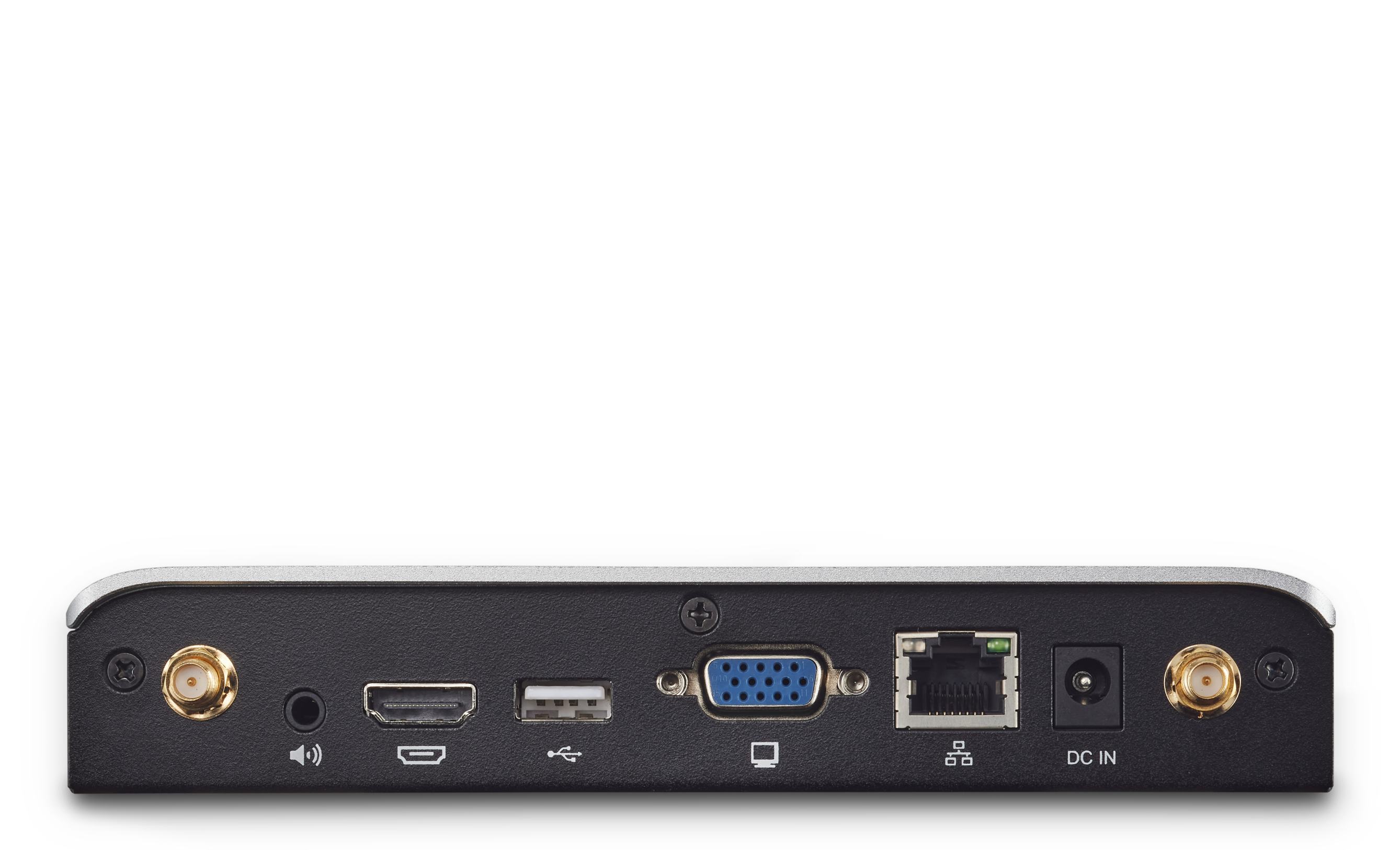

I/O Ports

HDMI x1

VGA x1

USB 2.0 Type-A x1

USB 3.0 Type-A x1

USB 3.0 Type-C x1

3.5mm Audio Jack x1

10/100/1000 Ethernet LAN x1

Power Jack x1
Power Supply

PSU: 12V / 2A

PoE: 48V / 0.32A
Net Weight
500g
Dimensions (H x W x D)
170 x 104.4 x 30.5 mm
Temperature

Operating: 0º‒40ºC (32º‒104ºF)

Storage: -10º‒70ºC (14º‒158ºF)
Humidity (non-condensing)

Operating: 20%‒80%

Storage: 10%‒90%
Certifications
FCC, CE, NCC, BSMI
Warranty
3-Year Limited Warranty
