ASTROS Station AS-101

Your Device, Your Meeting.

AS-101 is a wireless presentation solution designed for modern meeting and educational spaces.
It fully supports BYOD, allowing users to share content directly from laptops, tablets, or smartphones—no extra cables or complicated software required.

Download Brochure Download Firmware

Login Code

Use a code to prevent unauthorized access.

OTA Update

Keep Devices Up-to-Date Wirelessly.

2-Split View

Display up to two sources simultaneously, side by side.

One-to-Many

Send content to multiple screens at once.

Smart Sharing

Pick between full screen or specific app windows.

HDMI & VGA

Send the same content to VGA and HDMI at the same time.

Native Mirroring

Mirror your device instantly with AirPlay, Google Cast, or Miracast.

4K Video Output

Showcase your content in vibrant 4K resolution.

Work Smarter in 3 Steps
icon-1

Set Up the Station

  • Power up with DC or PoE
  • Connect your display and conferencing devices (HDMI & USB)
  • Get online via Ethernet or standalone mode
icon-2

Get Ready to Share

  • For mobile devices, install the ASTROS App, or connect via AirPlay or Google Cast.
  • For laptops, install the ASTROS App, or connect using the ASTROS Pod or Miracast.

💡Tip: Ensure your device and the ASTROS Station are connected to the same network.
icon-3

Start Sharing

  • ASTROS Pod: Press the button when it lights blue, you’re ready to share.
  • ASTROS App: One tap on the ▶️ play button, and your screen goes live.

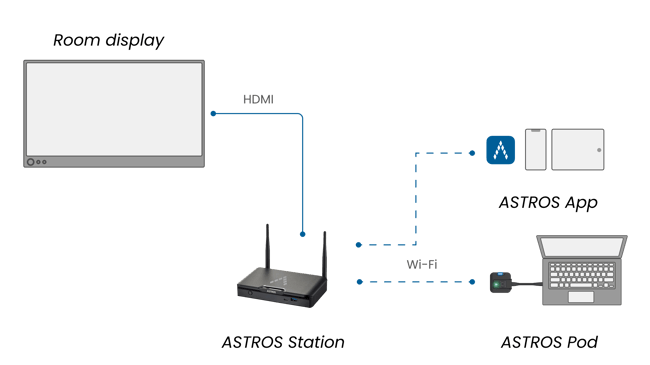

ASTROS Wireless System
Group 7823-1

Paired with ASTROS Pod & App
Group 7807-1


Sender

ASTROS Pod

Designed for laptops with USB Type-C connectivity, the ASTROS Pod enables wireless conferencing and screen sharing with a single click. No setup hassle, just pure collaboration.
Group 7819

Sender

ASTROS App

An intuitive app for both laptops and mobile devices, making idea sharing effortless and ensuring smooth hybrid meetings for daily collaboration.
AS-101 image (3)
AS-101 image (4)

Key Features

Key Features
AS-101 AS-201
Feature Overview
BYOD (Bring Your Own Device)
BYOM (Bring Your Own Meeting)
APP BYOM
Split Screen Display
Up to 2 screens
Up to 4 screens
Video Output
HDMI, VGA
HDMI, VGA
Touch Back / HID Control
Built-in Whiteboard
Annotation Tools
Remote View
via ASTROS App
Up to 20 devices per station
One-to-Many
via ASTROS App
Smart Sharing
via ASTROS App
Moderation Mode
On-Screen
On-Screen & Web
GateKeeper
Native Mirroring
Airplay, Google Cast, Miracast, BeamOp, Browser Sharing
*Miracast works with an optional dongle
Airplay, Google Cast, Miracast, BeamOp, Browser Sharing
*Miracast works with an optional dongle
Connection Capacity
Up to 8 connections
Up to 20 connections
*Wi-Fi router is required when Wi-Fi direct connections to ASTROS Station exceed 8 including ASTROS Pod.
OTA Update
AS-101
Specifications
Compatible OS

Windows 10 or later

macOS 12.5 or later

iOS 14 or later

Android 11.0 or later

Chrome OS 84 or later
Video Output Resolution

HDMI: up to 4K @60Hz

HDMI+VGA: up to 1080p @60Hz
Audio Output
HDMI and 3.5mm Audio Jack
Wi-Fi Band
Switchable dual band 2.4GHz / 5GHz (DFS channels not supported)
Wireless Transmission Protocol
IEEE 802.11ac
Power
DC input
LAN
Single LAN port
Authentication

AP Mode: WPA2-PSK

Station Mode: WEP, WPA, WPA2, 802.1x EAP
Ethernet
10/100/1000 Mbps RJ-45 LAN

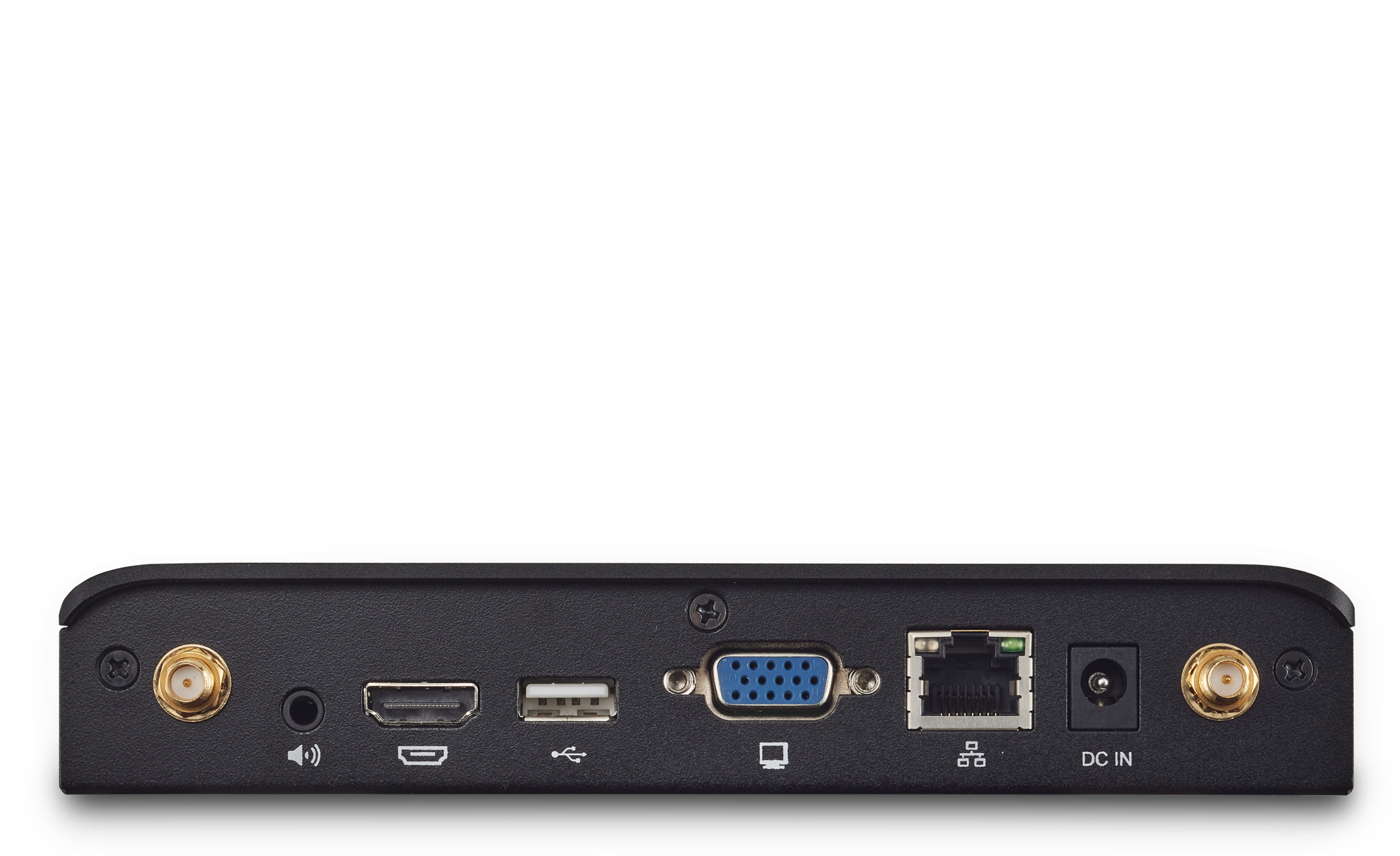

I/O Ports

HDMI x1

VGA x1

USB 2.0 Type-A x1

USB 3.0 Type-A x1

USB 3.0 Type-C x1

3.5mm Audio Jack x1

10/100/1000 Ethernet LAN x1

Power Jack x1
Power Supply
12V / 2A
Net Weight
0.5 kg
Dimensions (H x W x D)
170 x 104.4 x 30.5 mm
Temperature

Operating: 0º‒40ºC (32º‒104ºF)

Storage: -10º‒70ºC (14º‒158ºF)
Humidity (non-condensing)

Operating: 20%‒80%

Storage: 10%‒90%
Certifications
FCC, CE, NCC, BSMI
Warranty
3-Year Limited Warranty

ASTROS Solution Packages

Ready-to-use bundles designed for faster deployment and a seamless meeting experience.

Contact Sales

AS-101-S1

AS-101 & AP4-11

Group 8148

AS-201-S1

AS-201 & AP4-12

Group 8149

AS-201-VC

AS-201 & APP BYOM License

Group 8146
