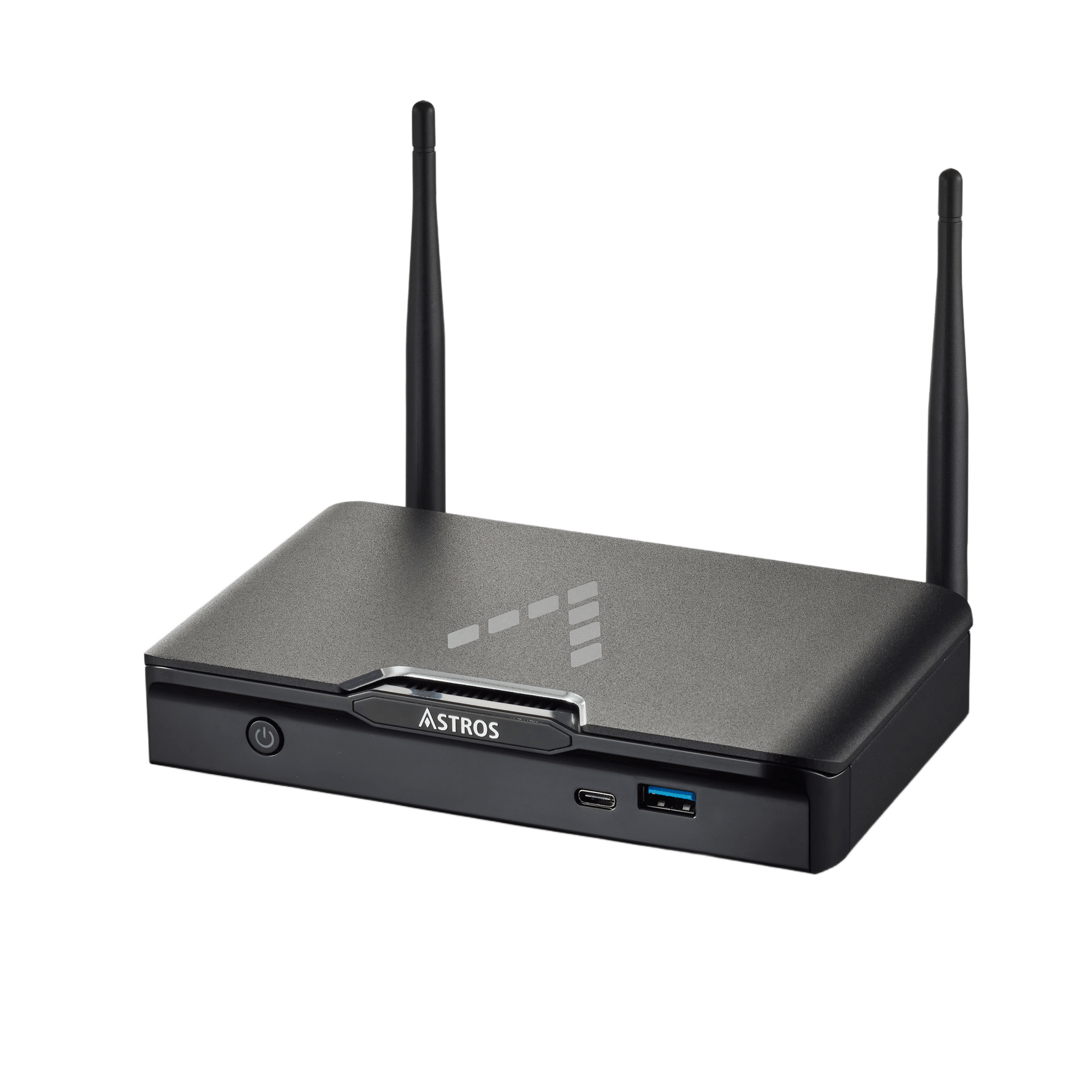

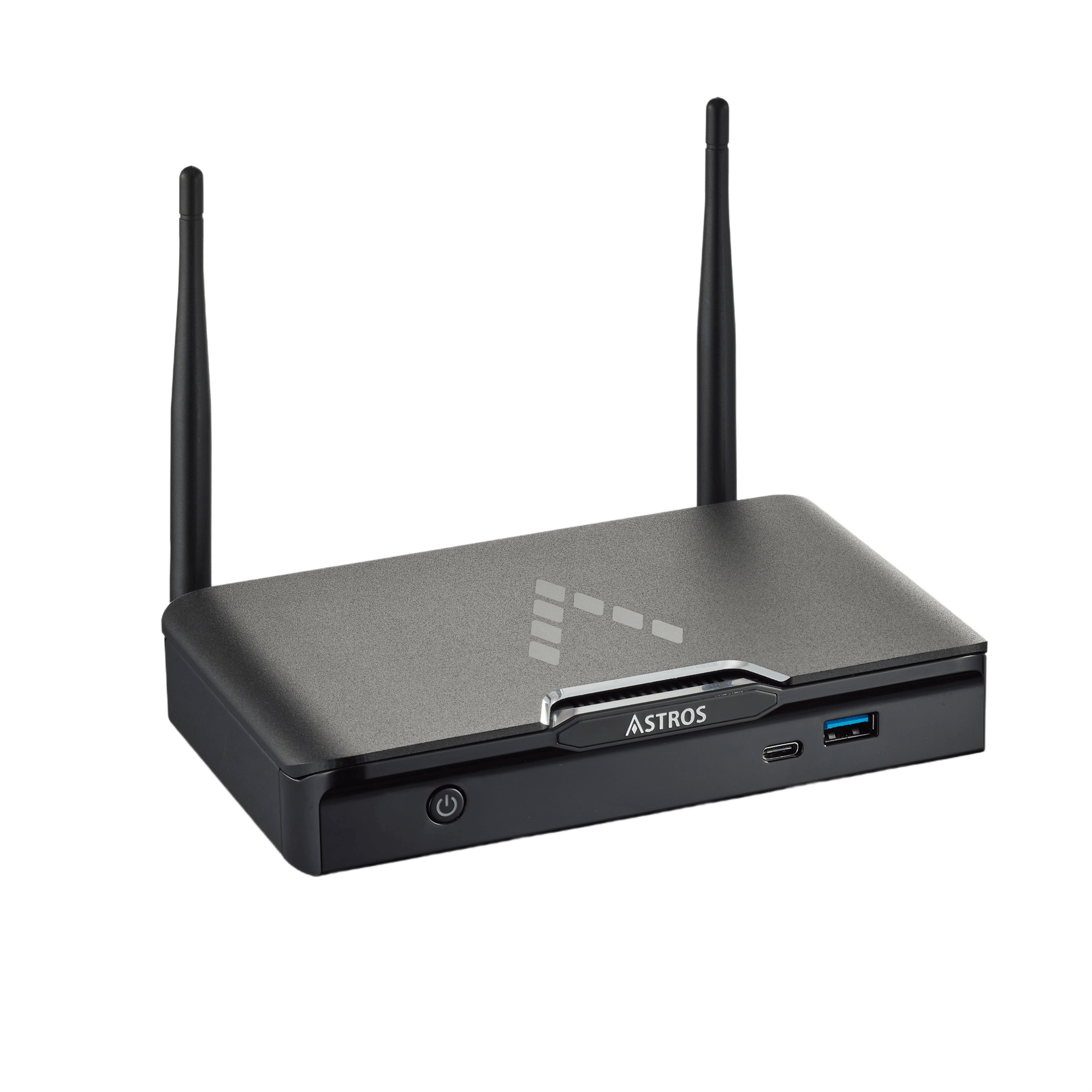

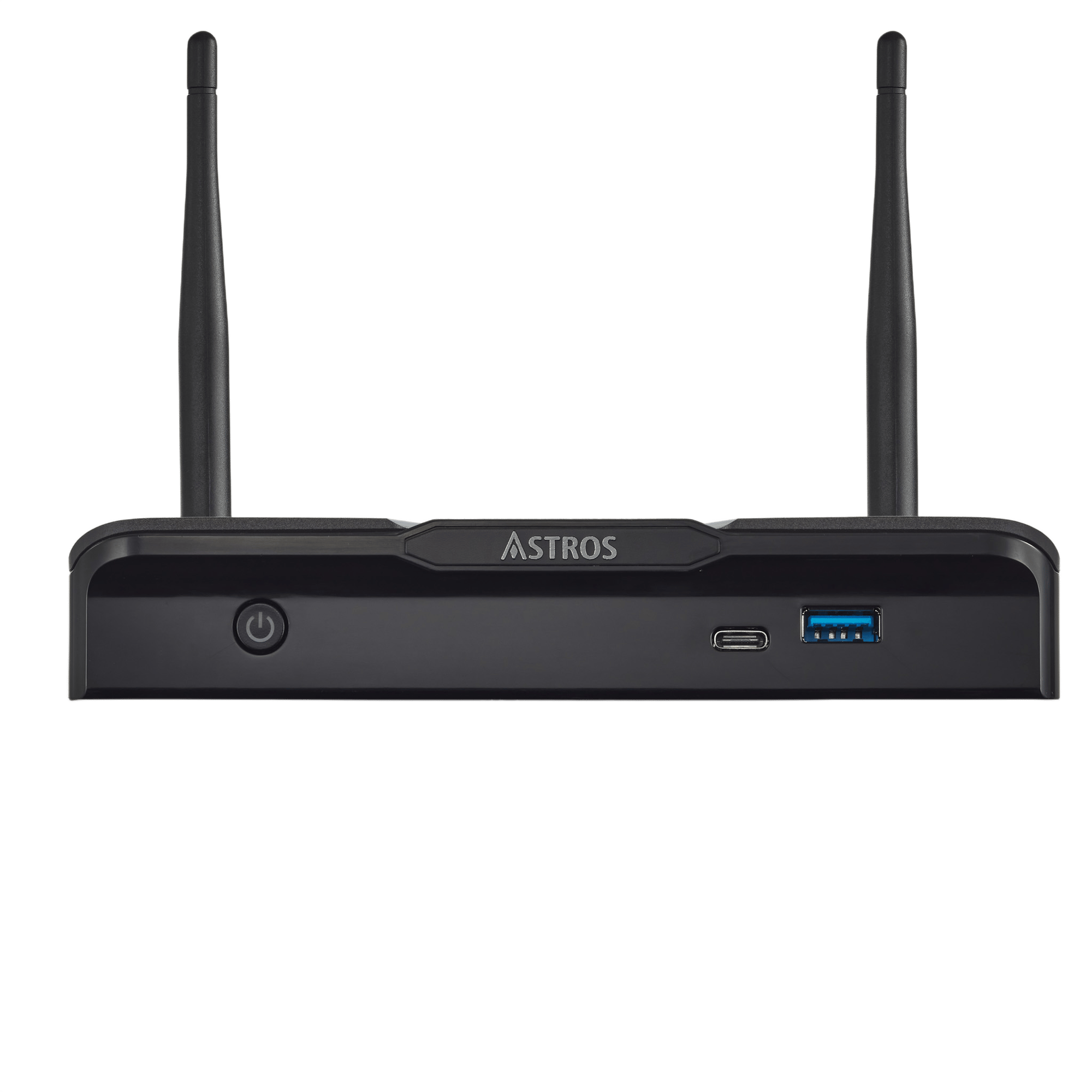

ASTROS Station AS-101

Your Device, Your Meeting.

AS-101 is a wireless presentation solution designed for modern meeting and educational spaces.
It fully supports BYOD, allowing users to share content directly from laptops, tablets, or smartphones—no extra cables or complicated software required.

Download Brochure

Login Code

Use a code to prevent unauthorized access.

OTA Update

Keep Devices Up-to-Date Wirelessly.

2-Split View

Display up to two sources simultaneously, side by side.

One-to-Many

Send content to multiple screens at once.

Smart Sharing

Pick between full screen or specific app windows.

HDMI & VGA

Send the same content to VGA and HDMI at the same time.

Native Mirroring

Mirror your device instantly with AirPlay, Google Cast, or Miracast.

4K Video Output

Showcase your content in vibrant 4K resolution.

Key Features

Key Features
AS-101 AS-201
Feature Overview
BYOD (Bring Your Own Device)
BYOM (Bring Your Own Meeting)
APP BYOM
Split Screen Display
Up to 2 screens
Up to 4 screens
Video Output
HDMI, VGA
HDMI, VGA
Touch Back / HID Control
Built-in Whiteboard
Annotation Tools
Remote View
via ASTROS App
Up to 20 devices per station
One-to-Many
via ASTROS App
Smart Sharing
via ASTROS App
Moderation Mode
On-Screen
On-Screen & Web
GateKeeper
Native Mirroring
Airplay, Google Cast, Miracast, BeamOp, Browser Sharing
Airplay, Google Cast, Miracast, BeamOp, Browser Sharing
Connection Capacity
Up to 8 connections
Up to 20 connections
OTA Update
AS-101
Specifications
Compatible OS

Windows 10 or later

macOS 10.14 or later

iOS 12 or later

Android 8.1 or later

Chrome OS 84 or later
Video Output Resolution

HDMI: up to 4K @30Hz

HDMI+VGA: up to 1080p @60Hz
Audio Output
HDMI and 3.5mm Audio Jack
Wi-Fi Band
Switchable dual band 2.4GHz / 5GHz (DFS channels not supported)
Wireless Transmission Protocol
IEEE 802.11ac
Power
DC input
LAN
Single LAN port
Authentication

AP Mode: WPA2-PSK

Station Mode: WEP, WPA, WPA2, 802.1x EAP
Ethernet
10/100/1000 Mbps RJ-45 LAN (PoE supported)

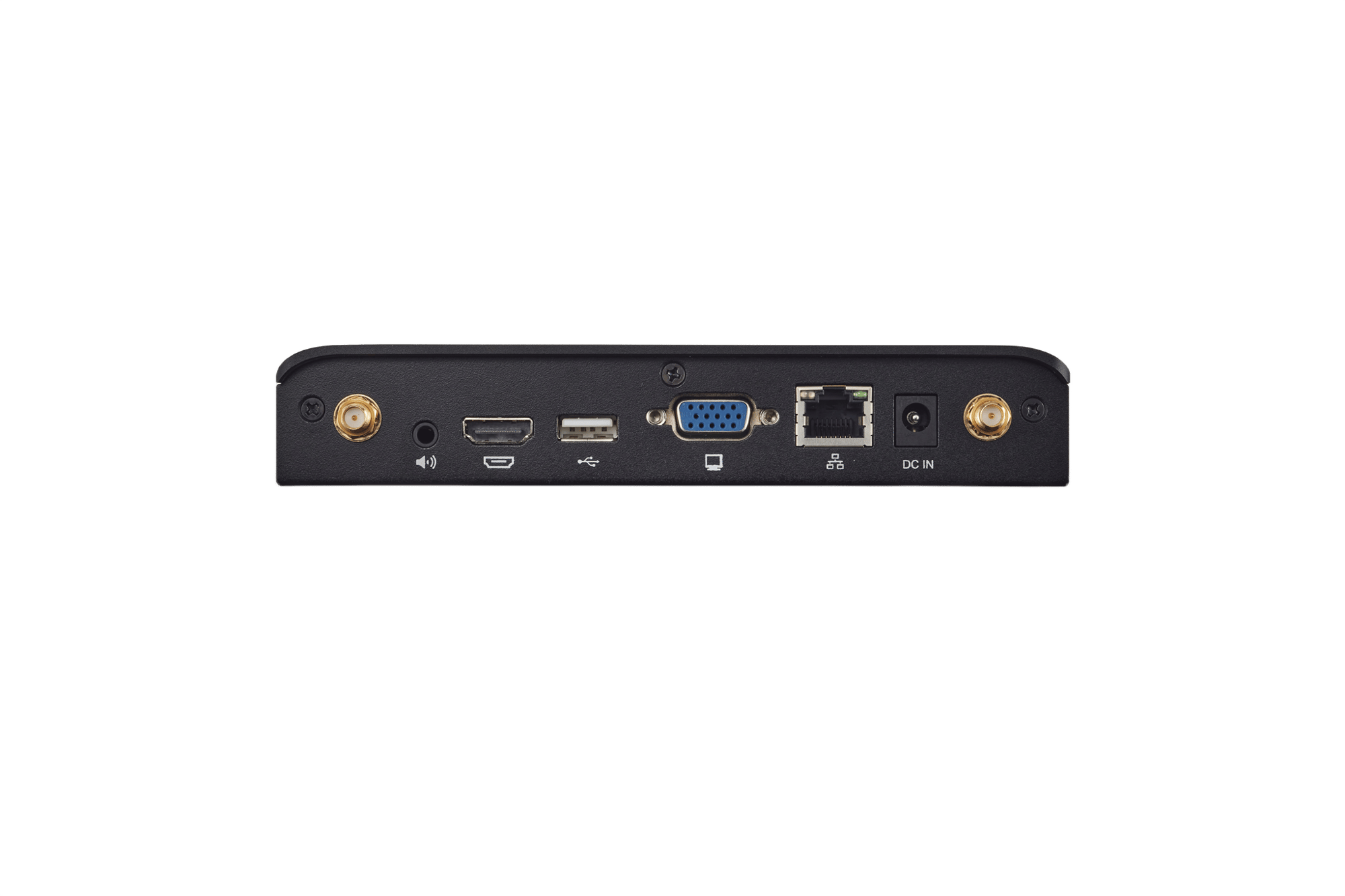

I/O Ports

HDMI x1

VGA x1

USB 2.0 Type-A x1

USB 3.0 Type-A x1

USB 3.0 Type-C x1

3.5mm Audio Jack x1

10/100/1000 Ethernet LAN x1

Power Jack x1
Power Supply
12V / 2A
Net Weight
0.5 kg
Dimensions (H x W x D)
170 x 104.4 x 30.5 mm
Temperature

Operating: 0º‒40ºC (32º‒104ºF)

Storage: -10º‒70ºC (14º‒158ºF)
Humidity (non-condensing)

Operating: 20%‒80%

Storage: 10%‒90%
Certifications
FCC, CE, NCC, BSMI
Warranty
3-Year Limited Warranty
